Missing double symmetry

Hello.

I missing in zbrush “double symmetry” transformation.

For example on the radial objects with few or more same segments, is no way to made symmetry on each segment depending on the segment center.

I need to create radial object with clean symmetrical segments, but all the time I should manually modify each segment side.

Is there any 3d program that supports it?

I don’t think so, but it doesn’t mean that it can not be included in future. :slight_smile:

Split the cylinder as a pie into many parts, and for each part calculate symmetry, I don’t think it is difficult to script, or it difficult ?:slight_smile:

P.s. Thanks for your replies.

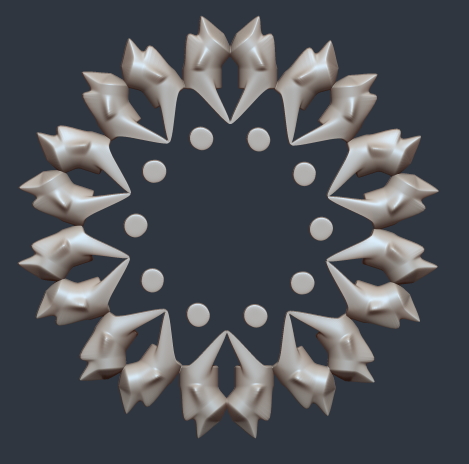

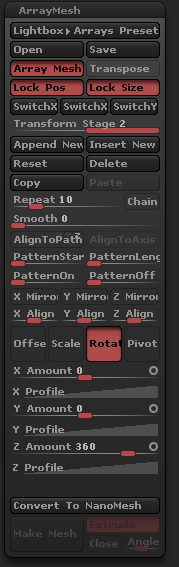

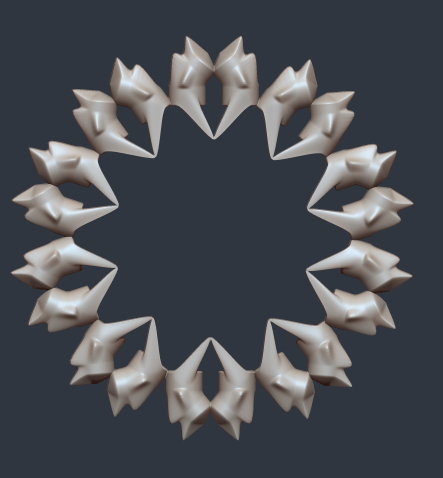

No full freedom but you could do it with arraymesh. After done the array you can keep editing the initial module and see the updates real time. It would need 2 transform stages, the first with mirror and the second with rotation, and lock position and size. Because it is an array you can do even more complex combinations than this one. They are separated pieces but they can be merged later with dynamesh if needed.
Image 1838.jpgImage 1839.jpg

Attachments

Image 1837.jpg
