ZBrushCentral

Insert Multi Mesh Repository

ZBrush Artworks
#251

Great Thread! Thanks!
I’m new with Zbrush. :o

#252

Hi everybody, here is my little contribution to this thread. EyeLashesCurve brush. I hope it works fine for all you as it does for me.


Some advices before use:

Stroke from right to left or viceversa produces diferent effects.Can use in your benefints for Up or down eyelashes

For some reason Zbrush 4R5 can´t store the falloff curves in the custom brushes.So we have an option to Work best with this brush:
-Activate Size in Stroke-> Curve Modifiers-> Size ON
-Same palette Stroke-> Curve Modifiers-> Curve Falloff. Modify curve to Straingt if you wish all lashes the same size, or play with the curve falloff.

It´s also needed in most cases to use Transpose Move tool to perfect match with the eyelip surface.(pressing W)
Also Move Topological Brush does a great work

All Strokes are randomly by default. But You can changes all values in Brush Menu-> Modifiers-> Variation and Variation Selector Mode.
If no need to random your Eyelashes Just set Variations to 0 and choose from MultiMesh Select the mesh you like.

Also notice the Stroke-> Curve, Curve Steps is set to 1. You may want to increase or decrease the density here.
Same for the brush size, in Zbrush Size matters!

I made this brush to help in Eyelashing modeling, insted of oldschool method.
No comercial purposes and you can share freely

<<HAPPY ZBRUSHING>>

_franhazard

EyeLashes_FH.zip (13.9 KB)

Hope download works… it´s my very first post :confused:EyeLashes_FH.zip (13.9 KB)

2 Likes
#253

Nice idea there. I will have to give that brush a go. Thanks for the download and keep up the good work sir.

#254

awesome…great idea thanks!

#255

Neat!

#256

Hi everybody!
After some feedback about my EyeLashes brush i decided to release a second version with two brushes presets, and a better explanation of how can adjust some usefull parameters:

Applying a Curve Brush from right to left (or viceversa) will determine if your eyelashes point up or down, showed below:

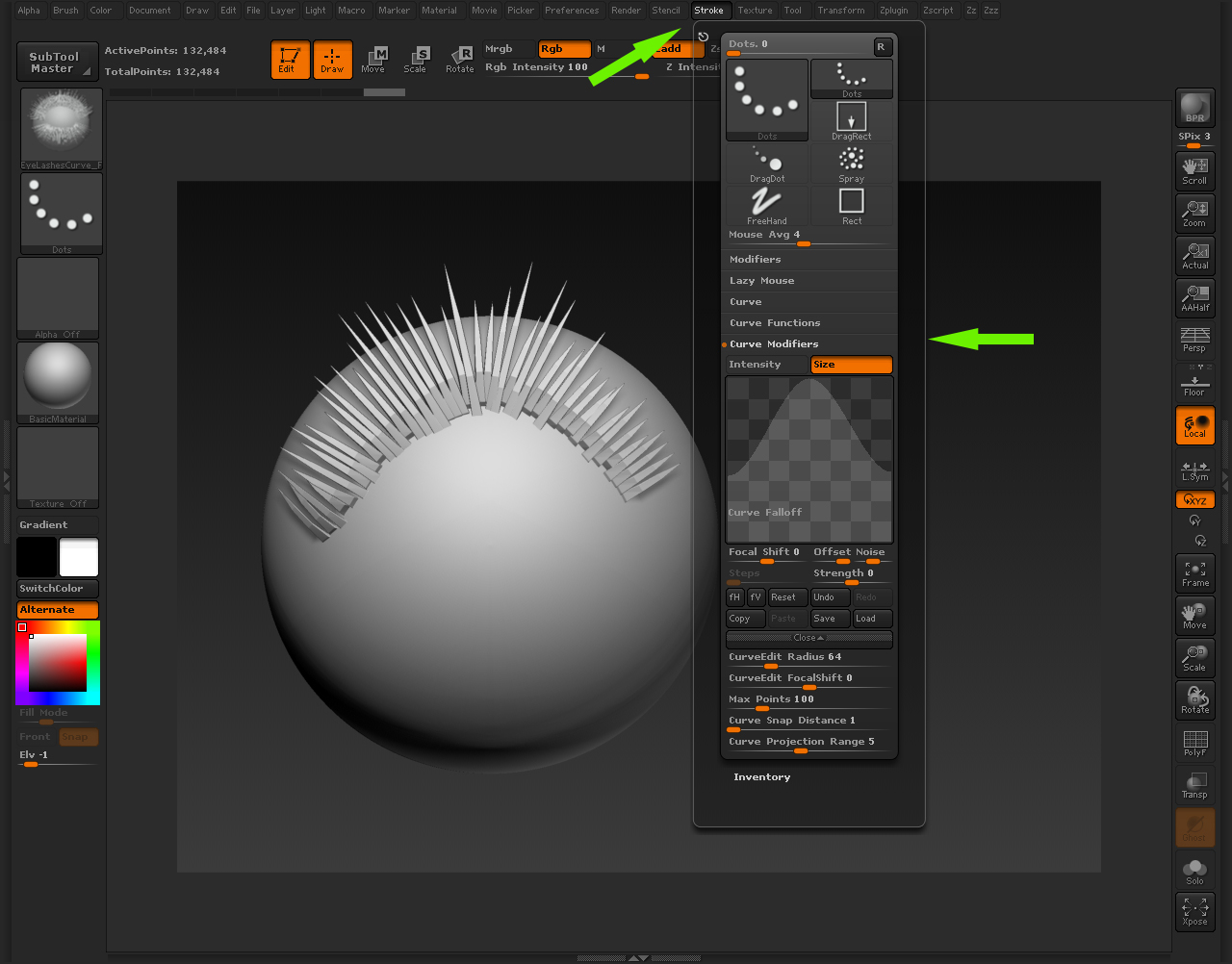

To Adjust the size falloff:

1) Go to the Stroke Menu. 2) Turn on Size under the 'Curve Modifiers' Tab. 3) Adjust the Curve Falloff to get the result you require

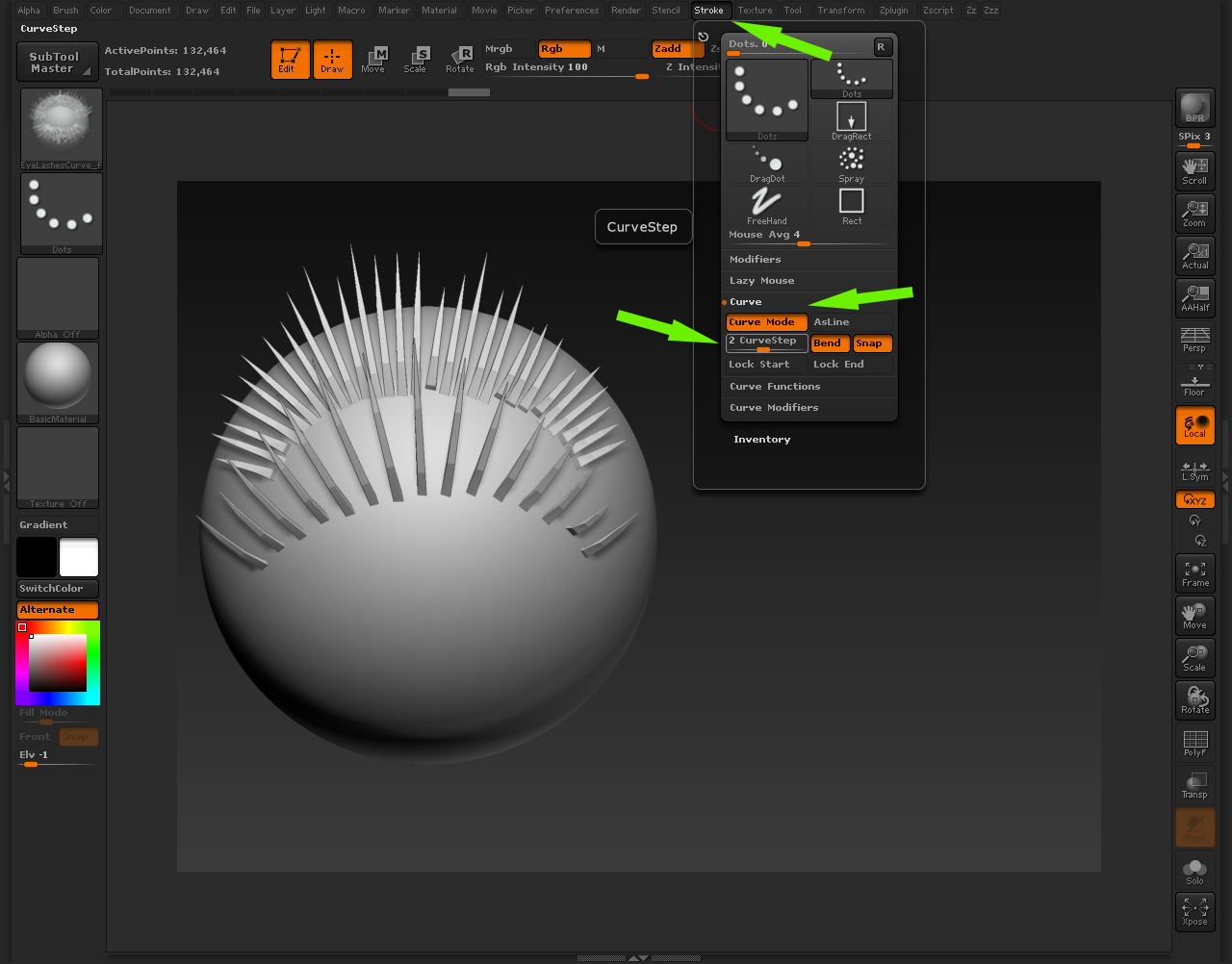

To Adjust the amount of EyeLashes per stroke:

1) Go to the Stroke Menu. 2) Expand Curve Tab 3) Adjust the CurveStep slider (Higher value for more spacing in between)

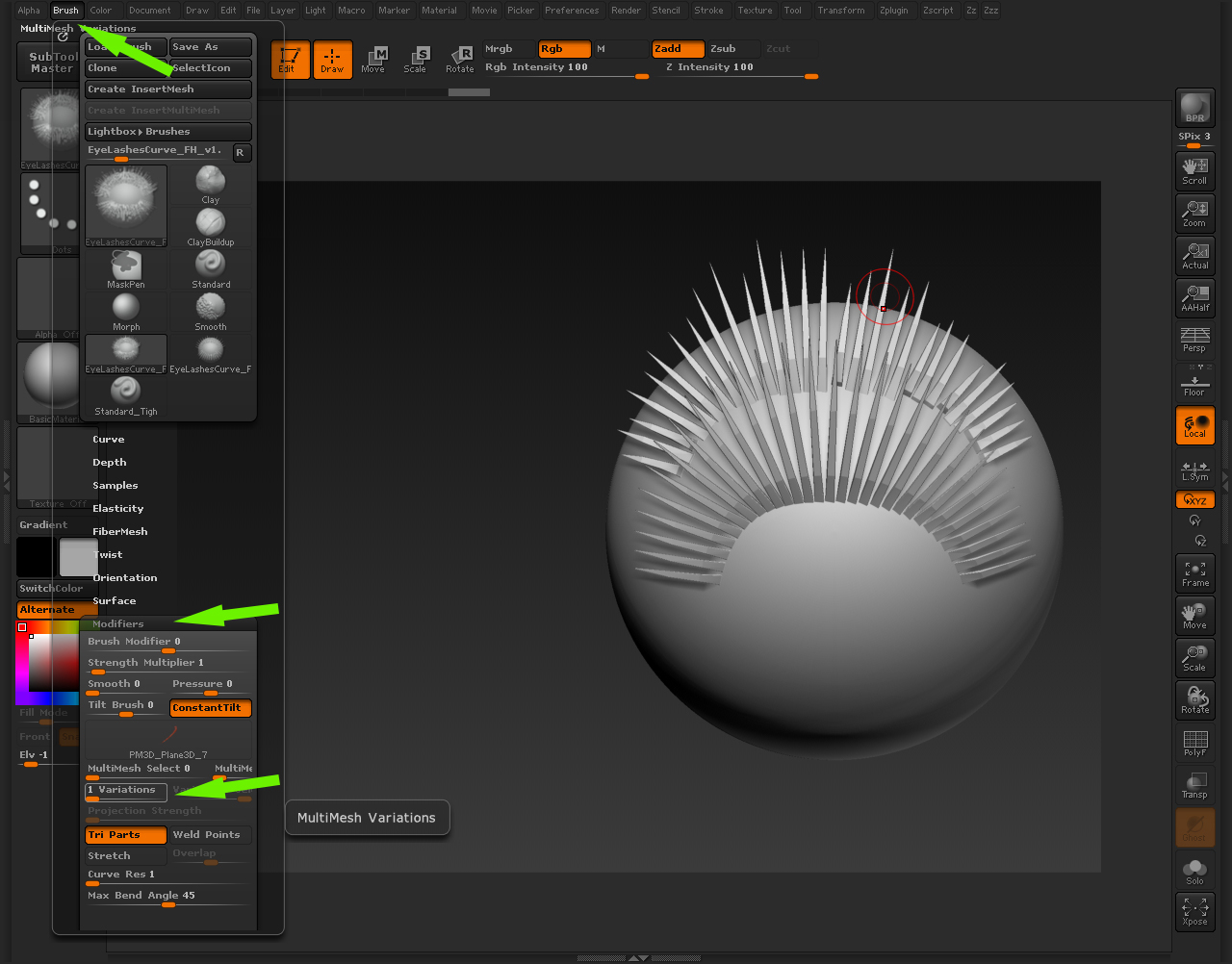

If no Random EyeLashes needed:

1) Go to the Brush Menu. 2) Expand the Modifiers Tab. 3) Set Variations slider to 1

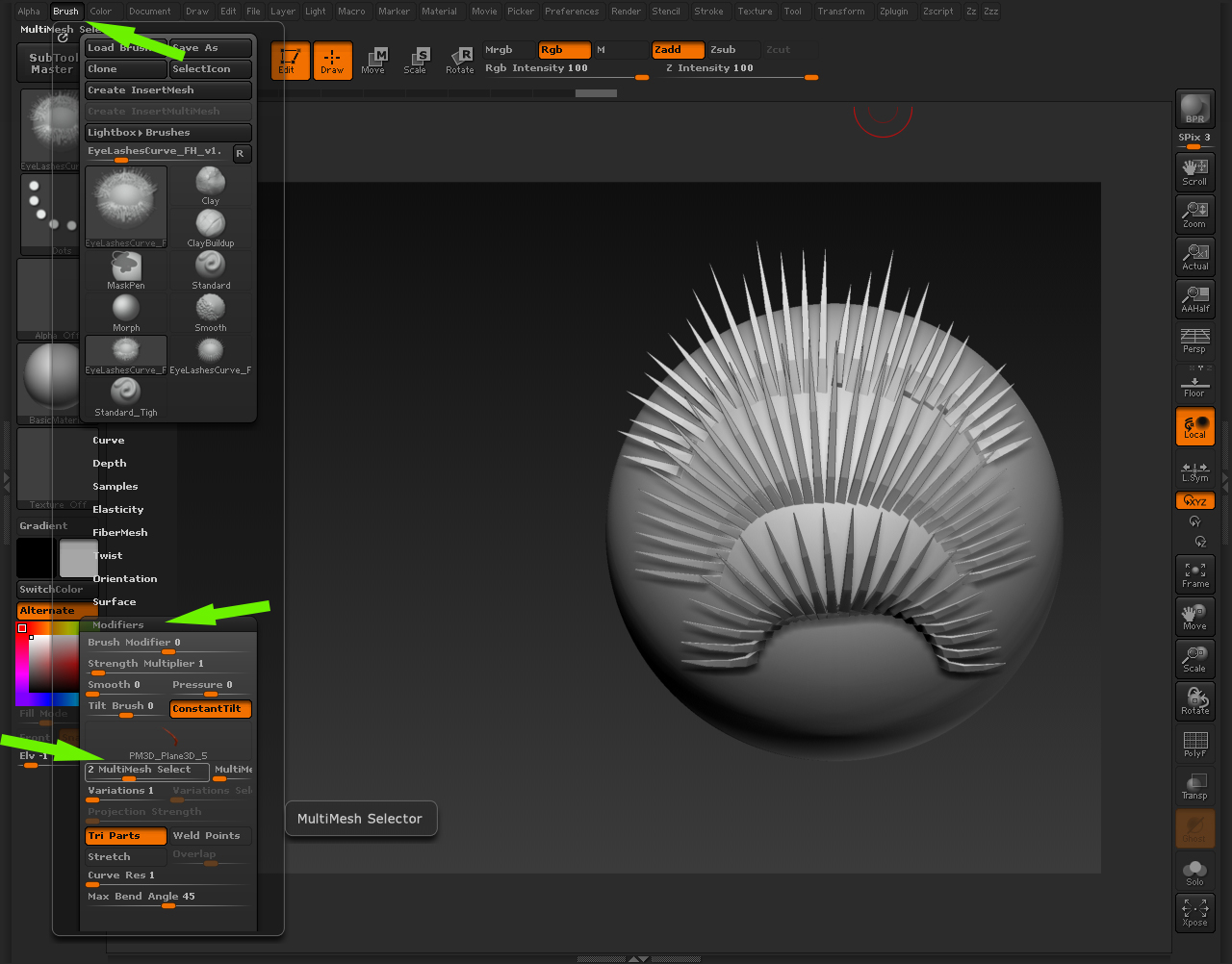

Optionally you can choose from 6 diferent EyeLashMeshes:

1) Go to the Brush Menu. 2) Expand the Modifiers Tab. 3) Choose a mesh with the MultiMesh Slelect slider


In most cases you will need to use the Transpose Tool and Move Brush to make adjustments. The Move Topological Brush is also recommended.
Most cases autoMasking when using curve brush is activated. So is very usefull to use SplitUnasked Under Subtool palette

I want to express my gratitude to BadKingfor all the support. Thanks mate i´ll never forget your friendly help, BTW Great thread!

You can download this brush here

Or directly from this thread
EyeLashes_FH_v2.zip (381 KB)

Thanks for watching

FranhazardEyeLashes_FH_v2.zip (381 KB)

Attachments





1 Like
#257

Good work, thanks for sharing;)

#258

Hi, thank you very much for your effort of sharing these, really helpful, for me at least:). All the best!

#259

Great add. Thanks for share it :D:+1:

#260


Hello Aurick! I love these insert meshes in these images… after searching the thread I can’t see them. Are you hiding the awesomeness from us??

Or am I simply blind?

Thanks in advance!

#261

These are amongst the standard IMM brushes in Z4 r5, select one of them in the brush palette then press M to choose one frome the category.

#262

doh! There they are. Thanks!

#263
Hi Guys... I've just uploaded another Freebie to my site... This IMM Bottle Brush Set is made up of 14 individual bottles, 2 Bottle Tops and a Straw.

Here is the Link…

Enjoy :wink:


1 Like
#264

Thanks for sharing

Cheers :slight_smile:

#265

Many thanks :slight_smile:

#266

thanks!
tons of resources :+1:small_orange_diamond:+1:small_orange_diamond:+1:small_orange_diamond:+1:small_orange_diamond:+1:

#267

good job, thanks for sharing:+1:

#268

Thanks for all for sharing

#269

Download file. Open the Applications folder - Open the ZBrush 4R5 folder - Open Zbrushes folder - move the downloaded file into misc folder or make your own. Open Zbrush and start working!

#270

va-dress-frills-IMM01.zip (91.4 KB)
va-machine-gun-belt-IMM01.zip (239 KB)
voronartcom-machine-gun-belt-IMM01.jpgva-dress-frills-IMM01.zip (91.4 KB)va-machine-gun-belt-IMM01.zip (239 KB)

1 Like
